Hydraulic Turbine CFD Analysis

Advanced Simulation for Performance Optimization

Trusted by Hydro Power Engineers | Advanced CFD Expertise (ANSYS CFX) | Experience with IIT Projects

ECS provides advanced Computational Fluid Dynamics (CFD) analysis for Pelton, Francis, and Kaplan turbines to improve efficiency and performance under real operating conditions.

Scope of Work

Geometry preparation
High-quality meshing
Transient simulation
Rotor-Stator interaction
Jet-Bucket interaction
Cavitation analysis

Key Parameters

Parameter	Symbol
Head	H
Flow Rate	Q
Power	P
Efficiency	η
Torque	T
Velocity	V

Software Used

ANSYS CFX
ANSYS Fluent
TurboGrid
SolidWorks
ICEM CFD
AutoCAD

CFD Simulation Results

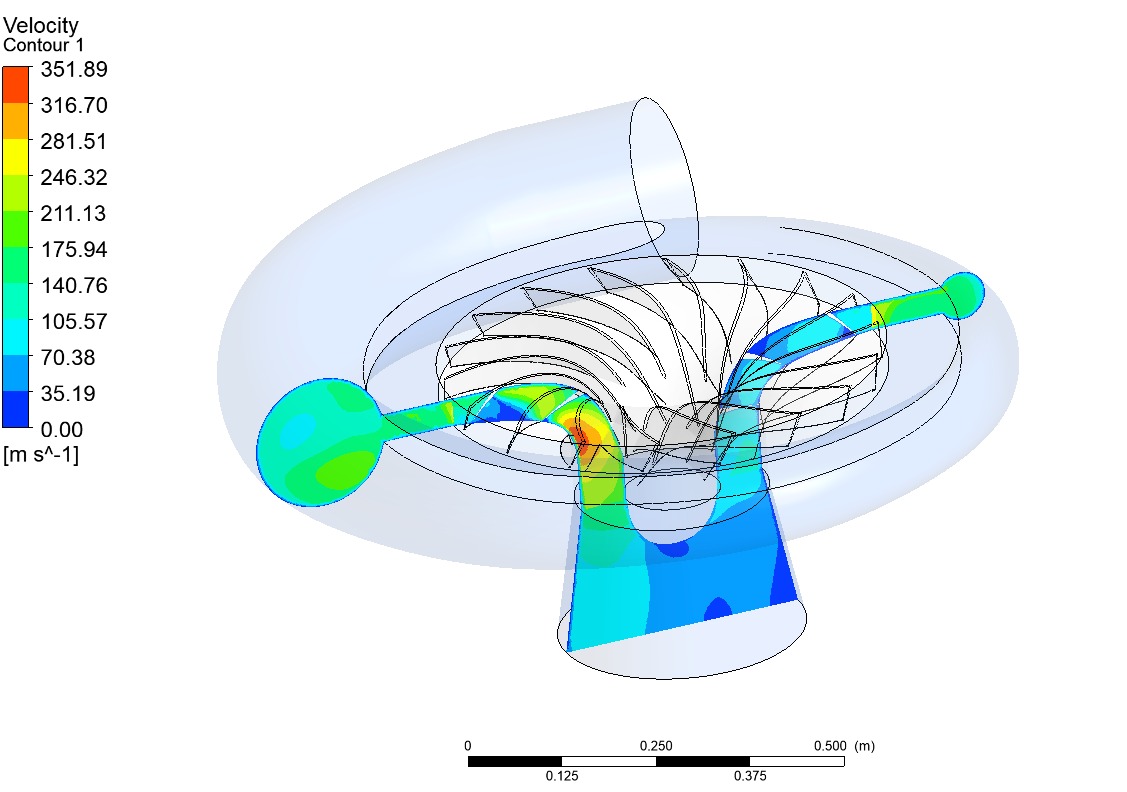

Velocity Contour – Jet Impact (Max ≈ 351 m/s)

Pressure Distribution (Max ≈ 27,400 Pa)

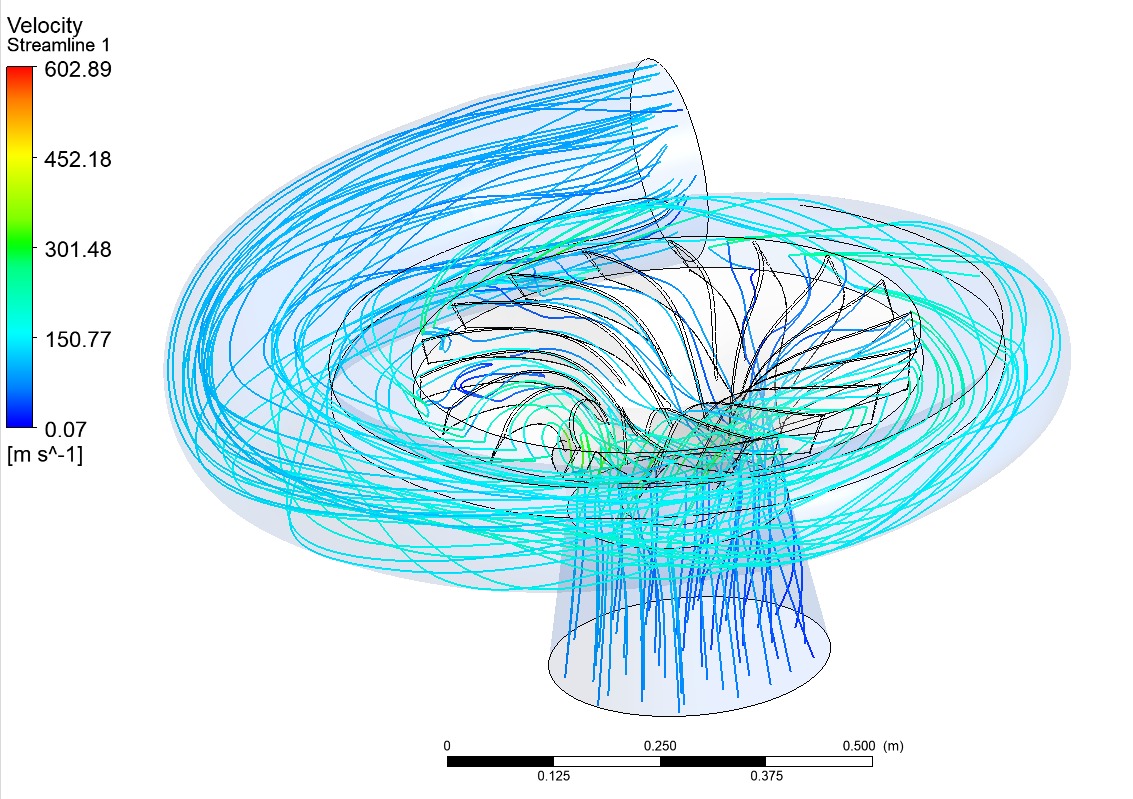

Flow Streamlines (Max ≈ 600 m/s)
